Encoders

TP9237

TP9237
Mã sản phẩm: TP9237 |‌ TP- CEC -B-DVG/US/
Nhà sản xuất: IFM, Germany
Measured signal converter for temperature sensors for Pt100 and Pt1000 measuring elements
Analogue output 0...10 V Measuring range: -50...300 °C / -58...572 °F
 Electrical data Electrical design  DC Operating voltage [V]  18...32 DC
Protection class  III Reverse polarity protection  yes  Outputs
Output  Analogue output 0...10 V Output function  0...10 V analogue
Short-circuit protection  pulsed Overload protection  yes
Analogue output  0...10 V; Rmin: 2000 Ω  Measuring / setting range Measuring range [°C/°F]  -50...300 / -58...572

TP3237

TP3237
Mã sản phẩm: TP3237 |‌ TP- CEC -A-ZVG/US/
Nhà sản xuất: IFM, Germany
Measured signal converter for temperature sensors for Pt100 and Pt1000 measuring elements
Analogue output 4...20 mA Measuring range: -50...300 °C / -58...572 °F
 Electrical data Electrical design  DC Operating voltage [V]  20...32 DC
Protection class  III Reverse polarity protection  yes
 Outputs Output  Analogue output 4...20 mA
Output function  4...20 mA analogue Short-circuit protection  pulsed

TR8430

TR8430
Mã sản phẩm: TR8430 |‌ TR-...KDBR12-SFPKG/US/....../V
Nhà sản xuất: IFM, Germany
Evaluation unit for temperature sensors Process connection: G ½ A
for Pt100 and Pt1000 measuring elements Gold-plated contacts
4 switch points 4-digit alphanumeric display Measuring range: -40...150 °C / -40...302 °F
 Electrical data Electrical design  DC PNP Operating voltage [V]  18...28 DC ¹) Current consumption [mA]  < 90 **)

TR7432

TR7432
Mã sản phẩm: TR7432 |‌ TR-...KDBR12-QFRKG/US/....../V
Nhà sản xuất: IFM, Germany
Infrared temperature sensor, Threaded type, M30 x 1.5, DC PNP, M12 connector, 7-segment LED display (2 digits), 2 switching outputs, 7-segment LED display

TP3231

TP3231


Mã sản phẩm: TP3231 |‌ TP- CEC -A-ZVG/US/
Nhà sản xuất: IFM, Germany
Measured signal converter for temperature sensors for Pt100 and Pt1000 measuring elements
Analogue output 4...20 mA Measuring range: -50...300 °C / -58...572 °F  Electrical data
Electrical design  DC Operating voltage [V]  20...32 DC Protection class  III
Reverse polarity protection  yes Output  Analogue output 4...20 mA
Output function  4...20 mA analogue Short-circuit protection  pulsed
Overload protection  yes Analogue output  4...20 mA; Rmax: 300 Ω

TP3232

TP3232
Mã sản phẩm: TP3232 |‌ TP- CEC -A-ZVG/US/
Nhà sản xuất: IFM, Germany
Measured signal converter for temperature sensors for Pt100 and Pt1000 measuring elements
Analogue output 4...20 mA Measuring range: -50...300 °C / -58...572 °F
 Electrical data Electrical design  DC Operating voltage [V]  20...32 DC
Protection class  III Reverse polarity protection  yes  Outputs
Output  Analogue output 4...20 mA Output function  4...20 mA analogue
Short-circuit protection  pulsed Overload protection  yes Analogue output  4...20 mA; Rmax: 300 Ω

TP3233

TP3233
Mã sản phẩm: TP3233 |‌ TP- FEC -A-ZVG/US/
Nhà sản xuất: IFM, Germany
Measured signal converter for temperature sensors for Pt100 and Pt1000 measuring elements
Analogue output 4...20 mA Measuring range: -50...300 °C / -58...572 °F  Electrical data
Electrical design  DC Operating voltage [V]  20...32 DC Protection class  III
Reverse polarity protection  yes  Outputs Output function  4...20 mA analogue
Short-circuit protection  pulsed Overload protection  yes Analogue output  4...20 mA; Rmax: 300 Ω

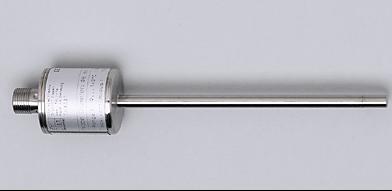

TA3231

TA3231
Mã sản phẩm: TA3231 |‌ TA-123.LDD06-A-ZVG/US/
Nhà sản xuất: IFM, Germany
Measuring range [°C/°F]  -10...150 / 14...302 Resolution
Analogue output [K]  < 0.02  Accuracy / deviations Analogue output [K]  ± 0.3
Temperature coefficients (in % of the span per 10 K)  < ± 0.1 *****)  Reaction times
Dynamic response T05 / T09 [s]  1.2 / 3.5 *)  Environment
Pressure rating [bar]  50; **) Ambient temperature [°C]  -25...70
Storage temperature [°C]  -40...100 Protection  IP 68 / IP 69K

TA3237

TA3237
Mã sản phẩm: TA3237 |‌ TA-123CLDD06-A-ZVG/US/
Nhà sản xuất: IFM, Germany
Temperature transmitter 6 mm clamp adapter
Connector Process connection: Ø 6 mm Installation length: 123 mm
Max. medium temperature 150°C / 302°F (max. 40 min.)
Analogue output Measuring range: 0...100 °C / 32...212 °F
Measuring element: 1 x Pt 1000, to DIN EN 60751, class A
 Application Application  liquids and gases Minimum installation depth [mm]  15
 Electrical data Electrical design  DC Operating voltage [V]  10...30 DC
