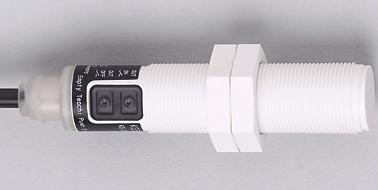

Capacitive sensor Plastic thread M18 x 1 Capacitive sensor Plastic thread M18 x 1 Cable Teach function Electronic lock Conduit attachment Sensing range 8 mm; [nf] non-flush mountable Application Application Optimised for the detection of conductive media (dielectric constant > 20) Electrical data Electrical design DC PNP Operating voltage [V] 10...36 DC Current consumption [mA] < 20 Protection class II Reverse polarity protection yes Outputs Output function normally open / closed programmable Voltage drop [V] < 2.5 Current rating [mA] 200 Short-circuit protection pulsed Overload protection yes Switching frequency [Hz] 10 Range Sensing range [mm] 8 Real sensing range (Sr) [mm] 8 ± 10 % Accuracy / deviations Correction factors water = 1 / glass approx. 0.4 / ceramics approx. 0.2 / PVC approx. 0.1 Hysteresis [% of Sr] 1...15 Switch-point drift [% of Sr] -20...20 Environment Ambient temperature [°C] -25...80 Protection IP 65 / IP 67 Tests / approvals EMC IEC 60947-5-2: 1997 + A1: 1999 + A2: 2003 MTTF [Years] 653 Mechanical data Mounting non-flush mountable Housing materials housing: PP white; sealing: TPE-U; buttons: TPE-U Weight [kg] 0.138 Displays / operating elements Output status indication LED yellow (translucent LED ring at cable entry) Electrical connection Connection PVC cable / 2 m; 3 x 0.34 mm²
»
Capacitive sensors - KI5002: 0 VND (KI-3015-BPKG/NI)
