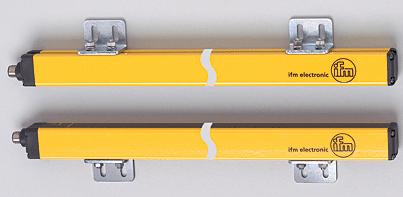

OY006S

Mã sản phẩm: OY006S |‌ OYA0910-14-4-06-P-1
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download
Photoelectric sensors Safety light curtain Length L: 963 mm Connector
Complies with the requirements: type 4 (IEC 61496-1) SIL 3 (IEC 61508) SILcl 3 (IEC 62061)
PL e (EN ISO 13849-1)  Electrical data Electrical design  DC PNP Operating voltage [V]  24 DC (19.2...28.8) Current consumption   - Transmitter [mA]  42 - Receiver [mA]  83 Type of light  Infrared light 950 nm

Photoelectric sensors
Safety light curtain
Length L: 963 mm
Connector
Complies with the requirements:
type 4 (IEC 61496-1)
SIL 3 (IEC 61508)
SILcl 3 (IEC 62061)
PL e (EN ISO 13849-1)
 Electrical data
Electrical design  DC PNP
Operating voltage [V]  24 DC (19.2...28.8)
Current consumption
- Transmitter [mA]  42
- Receiver [mA]  83
Type of light  Infrared light 950 nm
Protection class  III
Reverse polarity protection  yes
Power-on delay time [s]  < 2
 Outputs
Outputs (OSSDs)  2 x PNP
Max. current load per output [mA]  400 (24 V)
Short-circuit protection  yes
 Range
Protected area height [mm]  910
Resolution (detection capacity d) [mm]  14
Protected area width (range) [m]  0...3 / 1...6
 Reaction times
Response time [ms]  13
 Environment
Applications  Class C to EN 60654-1 weatherproof application
Ambient temperature [°C]  -10...55
Max. relative air humidity [%]  95
Protection  IP 65 / IP 67
 Tests / approvals
EMC  IEC 61496-1
Shock resistance  IEC 61496-1
Vibration resistance  IEC 61496-1
 Safety classification
Mission time TM [h]  175200
Test interval T1 [Years]  20
Safety-related reliability PFHd [1/h]  2.3E-08
MTTFd [Years]  100
DC/CCF/Cat.  93.6 % / 80 % / 4
 Mechanical data
Length L [mm]  963
Housing materials  housing: aluminium; window: PC
Weight [kg]  3.275
 Displays / operating elements
Display
   LED yellow
   LED green
   LED Red
   LED blue
   LED orange
 Electrical connection
Transmitter
Connection  M12 connector
Wiring
Transmitter
 Receiver
Connection  M12 connector
Wiring
Receiver
 Max. connection cable length [m]  100 *)
 Accessories
Accessories (included)  4 mounting brackets; 4 mounting nuts; nuts
 Remarks
Remarks
*) for wire cross-section 0.34 mm²
Pack quantity [piece]  1
