Danh mục sản phẩm > > Safety light grids > OY421S

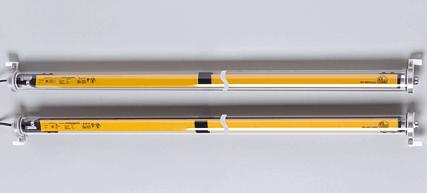

OY421S

Mã sản phẩm: OY421S |‌ OYA0510-02-4-15-P-1-A
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download
Photoelectric sensors Safety light grid Length L: 770 mm Cable with IP69K protective tube Complies with the requirements: type 4 (IEC 61496-1) SIL 3 (IEC 61508) SILcl 3 (IEC 62061)
PL e (EN ISO 13849-1)  Electrical data Electrical design  DC PNP Operating voltage [V]  24 DC (19.2...28.8) Current consumption   - Transmitter [mA]  42 - Heating [mA]  333 - Receiver [mA]  83 - Heating [mA]  333 Type of light  Infrared light 950 nm

Photoelectric sensors
Safety light grid
Length L: 770 mm
Cable
with IP69K protective tube
Complies with the requirements:
type 4 (IEC 61496-1)
SIL 3 (IEC 61508)
SILcl 3 (IEC 62061)
PL e (EN ISO 13849-1)
 Electrical data
Electrical design  DC PNP
Operating voltage [V]  24 DC (19.2...28.8)
Current consumption
- Transmitter [mA]  42
- Heating [mA]  333
- Receiver [mA]  83
- Heating [mA]  333
Type of light  Infrared light 950 nm
Protection class  III
Reverse polarity protection  yes
Power-on delay time [s]  < 2
 Outputs
Outputs (OSSDs)  2 x PNP
Max. current load per output [mA]  400 (24 V)
Short-circuit protection  yes
 Range
Protected area height [mm]  510
Number of beams  2
Protected area width (range) [m]  0...7 / 3...15
 Reaction times
Response time [ms]  2.5
 Environment
Ambient temperature [°C]  -20...55
Max. relative air humidity [%]  95
Protection  IP 65 / IP 67 / IP 69K
 Tests / approvals
EMC  IEC 61496-1
Shock resistance  IEC 61496-1
Vibration resistance  IEC 61496-1
 Safety classification
Mission time TM [h]  175200
Safety-related reliability PFHd [1/h]  9.2E-09
MTTFd [Years]  100
DC/CCF/Cat.  95.8 % / 80 % / 4
 Mechanical data
Length L [mm]  770
Housing materials  protective tube: PMMA transparent; Protective cap: POM; bracket: stainless steel (316L); sealing: silicone
Weight [kg]  4.7
