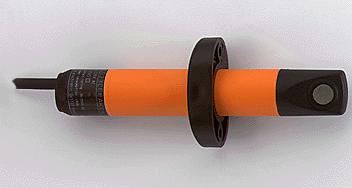

SL5201 Mã sản phẩm: SL5201 |‌ SLG23XEE40KG/2M/BS Nhà Sản Xuất: IFM, Germany Tài liệu hướng dẫn Download

Airflow monitor Cylindrical type Process connection: Ø 23 mm
Analogue output  Application Medium temperature Gases [°C]  35...65
 Electrical data Electrical design  DC Operating voltage [V]  24 DC ± 10 %
Current consumption [mA]  < 35  Outputs Output function  0...10 V analogue
 Measuring / setting range Flow range [cm/s]  200...2000 (= 1...10 V)
Airflow monitor
Cylindrical type
Process connection: Ø 23 mm
Analogue output
 Application
Medium temperature Gases [°C]  35...65
 Electrical data
Electrical design  DC
Operating voltage [V]  24 DC ± 10 %
Current consumption [mA]  < 35
 Outputs
Output function  0...10 V analogue
 Measuring / setting range
Flow range [cm/s]  200...2000 (= 1...10 V)
 Accuracy / deviations
Max. temperature gradient of medium [K/min]  1
 Reaction times
Power-on delay time [s]  90
 Environment
Pressure rating [bar]  1
Ambient temperature [°C]  -10...50
Max. relative air humidity [%]  90
Protection  IP 65
 Tests / approvals
MTTF [Years]  726
 Mechanical data
Process connection  Ø 23 mm
Materials (wetted parts)  PBT; titanium
Housing materials  housing: PBT; sensor surface: titanium
Weight [kg]  0.256
 Displays / operating elements
Display
Operation   LED green
 Electrical connection
Connection  Cable with M16 connector / 2 m; 4 x 0.5 mm²
