Danh mục sản phẩm > > Inductive Sensor > IG0011

IG0011

Mã sản phẩm: IGA2005-ABOA
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download

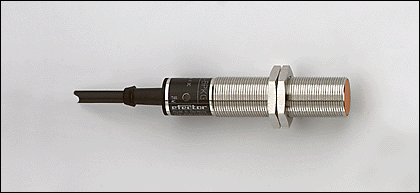

Inductive sensor, Metal thread, M18 x 1, AC/DC, Cable, Sensing range 5 mm [f]
Operating voltage: 20...250 V AC/DC
Electrical design: AC/DC
Output function: normally open
Current rating (continuous): 350 AC (...50 °C) / 250 AC (...80 °C) / 100 DC mA
Current rating (peak): î: 2.2 A (20 ms / 0.5 Hz) mA
Length: 80 mm
Mounting: flush mountable
Sensing range: 5 mm
Switching frequency: 25 AC / 50 DC Hz
Connection: PVC cable / 2 m; 2 x 0.5 mm²
Housing materials: Brass white bronze coated active face: PC (polycarbonate)
Ambient temperature: -25...80 °C
Protection: IP 67
Output status indication: LED yellow
Accessories (to be ordered separately): Mounting accessories
Brand: ifm electronic gmbh or equivalent
