Danh mục sản phẩm > > Flow sensors > SL5105

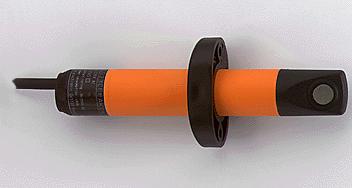

SL5105

Mã sản phẩm: SL5105 |‌ SLG23CEEAKOG/24VDC
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download
Airflow monitor Cylindrical type  Process connection: Ø 23 mm  Application Medium temperature Gases [°C]  -10...50
 Electrical data Electrical design  DC Operating voltage [V]  24 DC ± 25 % Power consumption [VA]  1  Outputs Output function  relay energised when flow is present Contact rating  3 A (30 V DC / 250 V AC)

Airflow monitor
Cylindrical type
Process connection: Ø 23 mm
 Application
Medium temperature Gases [°C]  -10...50
 Electrical data
Electrical design  DC
Operating voltage [V]  24 DC ± 25 %
Power consumption [VA]  1
 Outputs
Output function  relay energised when flow is present
Contact rating  3 A (30 V DC / 250 V AC)
 Measuring / setting range
Setting range [cm/s]  100...1000
Greatest sensitivity [cm/s]  100...400
 Accuracy / deviations
Max. temperature gradient of medium [K/min]  5
 Reaction times
Response time [s]  3...60
 Software / programming
Adjustment of the switch point  potentiometer
 Environment
Pressure rating [bar]  1
Ambient temperature [°C]  -10...50
Max. relative air humidity [%]  90
Protection  IP 65
 Tests / approvals
MTTF [Years]  1202
 Mechanical data
Process connection  Ø 23 mm
Materials (wetted parts)  PBT; titanium
Housing materials  housing: PBT; sensor surface: titanium
Weight [kg]  0.256
 Displays / operating elements
Function display LED  1 x red / 1 x green
 Electrical connection
Connection  PUR / PVC cable / 2 m; 4 x 0.5 mm²
