DI5004 Mã sản phẩm: DI5004  DIA3010-ZPKG/SS-000-K Nhà Sản Xuất: IFM, Germany Tài liệu hướng dẫn Download

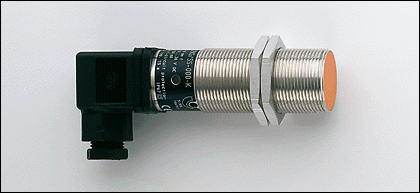

Evaluation systems, power supplies Product characteristics Compact speed monitor M30DIA
M30 x 1.5 Connector Sensing range 10 mm [f] flush mountable  Application
Application  simple evaluation of rotating and linear movement with regard to underspeed; blocking Switching function  output is switched during the start-up delay and if (f actual) is greater than (f preset) Electrical design  DC PNP Switching output  normally open
 Electrical data Nominal voltage [V]  10...36 DC Current consumption [mA]  < 15
Reverse polarity protection  yes
Evaluation systems, power supplies Product characteristics Compact speed monitor M30
DIA M30 x 1.5 Connector Sensing range 10 mm [f] flush mountable  Application
Application  simple evaluation of rotating and linear movement with regard to underspeed; blocking Switching function  output is switched during the start-up delay and if (f actual) is greater than (f preset) Electrical design  DC PNP Switching output  normally open
 Electrical data Nominal voltage [V]  10...36 DC Current consumption [mA]  < 15
Reverse polarity protection  yes  Outputs Transistor Current rating (continuous) [mA]  250
Current rating (peak) [mA]  250 Voltage drop [V]  < 2.5 Short-circuit proof  yes
Overload protection  yes  Range Sensing range [mm]  10
Correction factors  mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / Al approx. 0.4 / Cu approx. 0.3  Measuring / setting range Setting range [pulses/min.]  5...300
Adjustment of the switch point  multiturn potentiometer Hysteresis [% of Sp]  10
Start-up delay [s]  15  Reaction times
Damping frequency (max.) [pulses/min]  15000
 Environment Ambient temperature [°C]  -25...80
Protection  IP 67  Safety classification
MTTF [a]  898  Mechanical data Mounting  flush mountable Housing materials  Brass special coating; PBT (Pocan) Weight [kg]  0.2  Displays / operating elements Input pulses LED  yellow
Output status indication LED  green  Electrical connection Connection  SS connector
