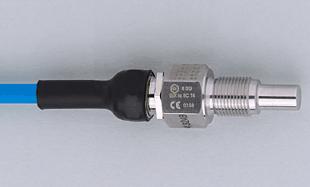

SF111A Mã sản phẩm: SF111A |‌ SFM12ADB/1/2G /6M Nhà Sản Xuất: IFM, Germany Tài liệu hướng dẫn Download

Flow sensor for connection to evaluation units Threaded type Cable Process connection: M12 x 1 Ambient temperature -20...60 °C ATEX approval Group II, category 1/2G Zone 0 / Zone 1  Application Application  liquids and gases Medium temperature [°C]  -20...60  Electrical data
Connection to control monitor  VS2000 Exi (PTB 01 ATEX 2075)
Flow sensor for connection to evaluation units
Threaded type
Cable
Process connection: M12 x 1
Ambient temperature -20...60 °C
ATEX approval
Group II, category 1/2G
Zone 0 / Zone 1
 Application
Application  liquids and gases
Medium temperature [°C]  -20...60
 Electrical data
Connection to control monitor  VS2000 Exi (PTB 01 ATEX 2075)
 Measuring / setting range
Liquids
Setting range [cm/s]  3...300
Greatest sensitivity [cm/s]  3...60
Gases
Setting range [cm/s]  200...2000 *)
Greatest sensitivity [cm/s]  200...800 *)
 Accuracy / deviations
Max. temperature gradient of medium [K/min]  15
 Reaction times
Response time [s]  1...10
 Environment
Pressure rating [bar]  300
Protection  IP 67
 Tests / approvals
Approval  DMT 03 ATEX E 090 X
TIIS TC17434
IECEx BVS 11.0017 X
Marking of the unit   II 1/2G Ex ia IIC T4 Ga/Gb
Shock resistance
DIN IEC 68-2-27:  40 g (11 ms)
Vibration resistance
DIN IEC 68-2-6:  10 g (55...2000 Hz)
MTTF [Years]  8648
 Safety classification
Internal capacitance [nF]  1.2
Internal inductance [µH]  6
Temperature class  T4
 Mechanical data
Process connection  M12 x 1
Materials (wetted parts)  stainless steel 316L / 1.4404
Housing materials  stainless steel 316L / 1.4404
Probe length L [mm]  12
Installation length [mm]  27
Weight [kg]  0.256
 Electrical connection
Connection  TPE-S cable / 6 m; 5 x 0.34 mm²
Max. cable length [m]  100 (5 x 0.5mm²)
