IF0284 Mã sản phẩm: IF0284 | IFA2002-BBOW/SL/LS-100AK RT Nhà Sản Xuất: IFM, Germany

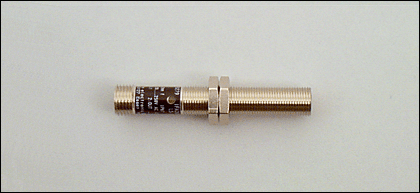

Inductive sensor, Metal thread, M12 x 1, AC, Connector, Sensing range 2 mm [f]
Operating voltage: 20...250 V AC (47...63 Hz)
Inductive sensor, Metal thread, M12 x 1, AC, Connector, Sensing range 2 mm [f]
Operating voltage: 20...250 V AC (47...63 Hz)
Electrical design: AC
Output function: Normally closed
Current rating (continuous): 250 at -25°C to +50°C, 200mA at +50°C to +80°C mA
Current rating (peak): î: 0.9 A (20 ms / 0.5 Hz) mA
Mounting: flush mountable
Sensing range: 2 mm
Switching frequency: 25 Hz
Connection: 1/2" connector
Housing materials: Brass white bronze coated PC (polycarbonate)
Ambient temperature: -25...80 °C
Protection: IP 67
Output status indication: LED Red
Accessories (to be ordered separately): Socket, Mounting accessories
Brand: ifm electronic gmbh or equivalent
Type: IF0284
