Danh mục sản phẩm > > Safety light curtains > OY805S

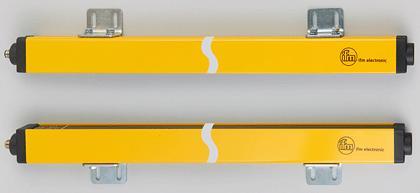

OY805S

Mã sản phẩm: OY805S |‌ OYA0760-14-4-05-P-1-B
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download
Photoelectric sensors Safety light curtain Length L: 861 mm Connector with floating blanking
Complies with the requirements: type 4 (IEC 61496-1) SIL 3 (IEC 61508) SILcl 3 (IEC 62061)
PL e (EN ISO 13849-1)  Electrical data Electrical design  DC PNP Operating voltage [V]  24 DC (19.2...28.8) Current consumption   - Transmitter [mA]  83 - Receiver [mA]  125 Type of light  Infrared light 950 nm

Photoelectric sensors
Safety light curtain
Length L: 861 mm
Connector
with floating blanking
Complies with the requirements:
type 4 (IEC 61496-1)
SIL 3 (IEC 61508)
SILcl 3 (IEC 62061)
PL e (EN ISO 13849-1)
 Electrical data
Electrical design  DC PNP
Operating voltage [V]  24 DC (19.2...28.8)
Current consumption
- Transmitter [mA]  83
- Receiver [mA]  125
Type of light  Infrared light 950 nm
Protection class  III
Reverse polarity protection  yes
Power-on delay time [s]  < 18
 Outputs
Outputs (OSSDs)  2 x PNP
Max. current load per output [mA]  500 (24 V)
Short-circuit protection  yes
 Range
Protected area height [mm]  760
Resolution (detection capacity d) [mm]  14
Protected area width (range) [m]  0...3 / 0...5
 Reaction times
Response time [ms]  13.5
 Environment
Applications  Class C to EN 60654-1 weatherproof application
Ambient temperature [°C]  0...55
Max. relative air humidity [%]  95
Protection  IP 65
 Tests / approvals
EMC  IEC 61496-1
Shock resistance  IEC 61496-1
Vibration resistance  IEC 61496-1
 Safety classification
Mission time TM [h]  175200
Safety-related reliability PFHd [1/h]  1.6 E -08
MTTFd [Years]  100
DC/CCF/Cat.  98.5 % / 80 % / 4
 Mechanical data
Length L [mm]  861
Housing materials  housing: aluminium; window: PC
Weight [kg]  4.116
 Displays / operating elements
Display
   LED yellow
   LED green
   LED Red
   7-segment LED display
 Electrical connection
Transmitter
Connection  M12 connector
