IF5904 Mã sản phẩm: IFK4004-CPKG/US-104-DPA Nhà Sản Xuất: IFM, Germany Tài liệu hướng dẫn Download

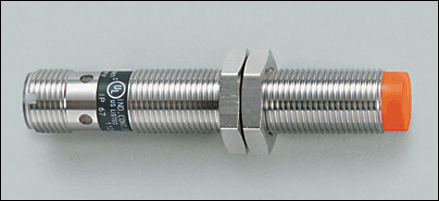

Inductive sensor, Metal thread, M12 x 1, DC PNP, Connector, Sensing range 4 mm [nf]
Operating voltage: 10...36 V DC
Electrical design: DC PNP
Output function: complementary
Current rating: 250 mA
Length: 70 mm
Mounting: non-flush mountable
Sensing range: 4 mm
Switching frequency: 1400 Hz
Connection: M12 connector
Housing materials: Brass white bronze coated active face: PC (polycarbonate)
Ambient temperature: -25...80 °C
Protection: IP 67
Output status indication: LED yellow (4 x 90°)
Accessories (to be ordered separately): Socket, Mounting accessories
Brand: ifm electronic gmbh or equivalent
