Current consumption [mA] < 18 Protection class III Reverse polarity protection yes Output function normally open / closed programmable Voltage drop [V] < 2.5 Current rating [mA] 100 Short-circuit protection pulsed Overload protection yes Switching frequency [Hz] 10 Range Sensing range [mm] 8 Real sensing range (Sr) [mm] 8 ± 10 % Electrical design DC PNP Operating voltage [V] 10...36 DC (60° C) / 10...30 DC (80° C) Current consumption [mA] < 18 Protection class III Reverse polarity protection yes Outputs Output function normally open / closed programmable Voltage drop [V] < 2.5 Current rating [mA] 100 Short-circuit protection pulsed Overload protection yes Switching frequency [Hz] 10 Range Sensing range [mm] 8 Real sensing range (Sr) [mm] 8 ± 10 % Accuracy / deviations Correction factors water = 1 / glass approx. 0.6 / ceramics approx. 0.5 / PVC approx. 0.4 Hysteresis [% of Sr] 1...15 Switch-point drift [% of Sr] -20...20 Environment Ambient temperature [°C] -25...80 Protection IP 65 / IP 67 Tests / approvals EMC IEC 60947-5-2: 1997 + A1: 1999 + A2: 2003 MTTF [Years] 719 Mechanical data Mounting flush mountable Housing materials housing: stainless steel 316L / 1.4404; buttons: TPE-U; cover: PBT; connector: PEI Weight [kg] 0.163 Displays / operating elements Output status indication LED yellow (4 x 90°) Electrical connection Connection M12 connector
»

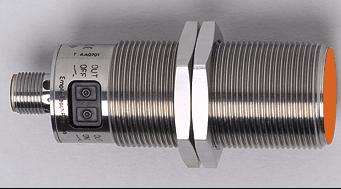

Capacitive sensors - KI5002: 0 VND (KI-3015-BPKG/NI)
» Capacitive sensors - KG5065: 0 VND (KG-3120NFAKGP2T/US) » Capacitive sensors - KG5066: 0 VND (KG-3120NFPKGP2T/US) » Capacitive sensors - KG5071: 0 VND (KG-3080NFPKG/2T/US) » Capacitive sensors - KI5082: 0 VND (KI-3200NFAKGP2T/US) » Capacitive sensors - KI5083: 0 VND (KI-3200NFPKGP2T/US) » Capacitive sensors - KI5084: 0 VND (KIA3080BFAKG/2T/US) |
