DI003A Mã sản phẩm: DI003A |‌ DIA2010-ZROA/3D Nhà Sản Xuất: IFM, Germany Tài liệu hướng dẫn Download

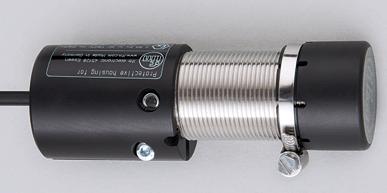

Compact speed monitor M30 DIA M30 x 1.5 Cable ATEX approval Group II, category 3D
Sensing range 10 mm [f] flush mountable  Application Application  simple evaluation of rotating and linear movement with regard to underspeed; blocking Switching function  output is switched during the start-up delay and if (f actual) is greater than (f preset) Electrical design  AC/DC Switching output  normally open
Compact speed monitor M30
DIA
M30 x 1.5
Cable
ATEX approval
Group II, category 3D
Sensing range 10 mm [f]
flush mountable
 Application
Application  simple evaluation of rotating and linear movement with regard to underspeed; blocking
Switching function  output is switched during the start-up delay and if (f actual) is greater than (f preset)
Electrical design  AC/DC
Switching output  normally open
 Electrical data
Nominal voltage [V]  20...250 AC/DC (45...65 Hz, AC)
Reverse polarity protection  yes
Protection class  II
 Outputs
Transistor
Current rating (continuous) [mA]  200 AC, 100 DC
Current rating (peak) [mA]  î: 2.2 A (20 ms / 0.5 Hz)
Minimum load current [mA]  > 6
Leakage current [mA]  < 1.5
Voltage drop [V]  < 6.5
Short-circuit proof  no
Overload protection  no
 Range
Sensing range [mm]  10, without impact protection housing [f], with impact protection housing [nf] 7 mm
Real sensing range (Sr) [mm]  10 ± 10 %; without impact protection housing (f)
Operating distance [mm]  0...5; with impact protection housing (nf)
Correction factors  mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / Al approx. 0.4 / Cu approx. 0.3
 Measuring / setting range
Setting range [pulses/min.]  5...300
Adjustment of the switch point  multiturn potentiometer
Hysteresis [% of Sp]  10
Start-up delay [s]  12 *)
 Reaction times
Damping frequency (max.) [pulses/min]  1500
 Environment
Ambient temperature [°C]  -20...50
Protection  IP 67
 Tests / approvals
Marking of the unit  II 3D Ex tc IIIC T80°C Dc IP67 U ***)
EMC   EN 60947-5-2
 Mechanical data
Mounting  flush mountable
Housing materials  Brass special coating; PBT (Pocan); PPE; TPE-U
Weight [kg]  0.358
 Displays / operating elements
Output status indication LED  green
 Electrical connection
Connection  PVC cable / 2 m; 2 x 0.5 mm²
