Danh mục sản phẩm > > Speed sensors > DI5005

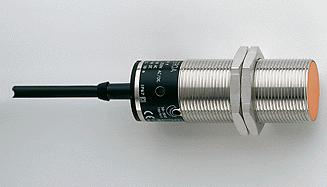

DI5005

Mã sản phẩm: DI5005 |‌ DIA3010-YPKG
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download
Compact speed monitor M30 DIA M30 x 1.5 Cable Sensing range 10 mm [f] flush mountable
 Application Application  simple evaluation of rotating and linear movement with regard to underspeed; blocking
Switching function  output is blocked during the start-up delay and if (f actual) is greater than (f preset) Electrical design  DC PNP Switching output  Normally closed  Electrical data
Nominal voltage [V]  10...36 DC Current consumption [mA]  < 15 Reverse polarity protection  yes  Outputs

Compact speed monitor M30
DIA
M30 x 1.5
Cable
Sensing range 10 mm [f]
flush mountable
 Application
Application  simple evaluation of rotating and linear movement with regard to underspeed; blocking
Switching function  output is blocked during the start-up delay and if (f actual) is greater than (f preset)
Electrical design  DC PNP
Switching output  Normally closed
 Electrical data
Nominal voltage [V]  10...36 DC
Current consumption [mA]  < 15
Reverse polarity protection  yes
 Outputs
Transistor
Current rating (continuous) [mA]  250
Current rating (peak) [mA]  250
Voltage drop [V]  < 2.5
Short-circuit proof  yes
Overload protection  yes
 Range
Sensing range [mm]  10
Correction factors  mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / Al approx. 0.4 / Cu approx. 0.3
 Measuring / setting range
Setting range [pulses/min.]  5...300
Adjustment of the switch point  multiturn potentiometer
Hysteresis [% of Sp]  10
Start-up delay [s]  15
 Reaction times
Damping frequency (max.) [pulses/min]  15000
 Environment
Ambient temperature [°C]  -25...80
Protection  IP 67
 Safety classification
MTTF [a]  898
 Mechanical data
Mounting  flush mountable
Housing materials  Brass special coating; PBT (Pocan)
Weight [kg]  0.257
 Displays / operating elements
Input pulses LED  yellow
Output status indication LED  green
 Electrical connection
Connection  PVC cable / 2 m; 3 x 0.5 mm²
