Danh mục sản phẩm > > Speed sensors > DI0004

DI0004

Mã sản phẩm: DI0004 |‌ DIA2010-ZROA/5-300 I/MIN OAU
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download

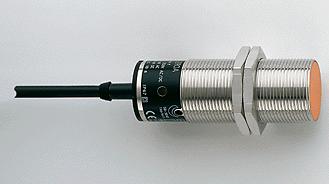

Compact speed monitor M30 DIA M30 x 1.5 Cable Sensing range 10 mm [f] flush mountable
 Application Application  simple evaluation of rotating and linear movement with regard to underspeed; blocking Switching function  output is switched during the start-up delay and if (f actual) is greater than (f preset) Electrical design  AC/DC Switching output  normally open
 Electrical data Nominal voltage [V]  20...250 AC/DC Reverse polarity protection  no Protection class  II  Outputs Transistor Current rating (continuous) [mA]  350 AC (...50 °C) / 250 AC (...80 °C) / 100

Compact speed monitor M30
DIA
M30 x 1.5
Cable
Sensing range 10 mm [f]
flush mountable
 Application
Application  simple evaluation of rotating and linear movement with regard to underspeed; blocking
Switching function  output is switched during the start-up delay and if (f actual) is greater than (f preset)
Electrical design  AC/DC
Switching output  normally open
 Electrical data
Nominal voltage [V]  20...250 AC/DC
Reverse polarity protection  no
Protection class  II
 Outputs
Transistor
Current rating (continuous) [mA]  350 AC (...50 °C) / 250 AC (...80 °C) / 100 DC
Current rating (peak) [mA]  2200
Minimum load current [mA]  10
Leakage current [mA]  < 2.5
Voltage drop [V]  < 6.5
Short-circuit proof  no
Overload protection  no
 Range
Sensing range [mm]  10
Correction factors  mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / Al approx. 0.4 / Cu approx. 0.3
 Measuring / setting range
Setting range [pulses/min.]  5...300
Adjustment of the switch point  multiturn potentiometer
Hysteresis [% of Sp]  10
Start-up delay [s]  < 0.5
 Reaction times
Damping frequency (max.) [pulses/min]  1500
 Environment
Ambient temperature [°C]  -25...70
Protection  IP 67
 Tests / approvals
EMC   EN 60947-5-2
 Safety classification
MTTF [a]  350
 Mechanical data
Mounting  flush mountable
Housing materials  Brass special coating; PBT (Pocan)
Weight [kg]  0.244
 Displays / operating elements
Input pulses LED  yellow
Output status indication LED  green
 Electrical connection
Connection  PVC cable / 2 m; 2 x 0.5 mm²
