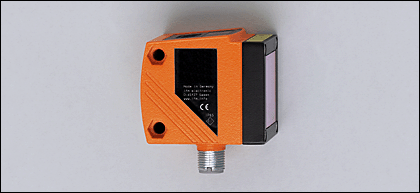

O1D300  Mã sản phẩm: O1D300  O1DLF3KG Nhà Sản Xuất: IFM, Germany Tài liệu hướng dẫn Download

Product characteristics Optical level sensor Connector Visible laser light, protection class 2 laser
4-digit alphanumeric display
Measuring range 0.2...10 m (Range referred to white paper 200 x 200 mm, 90 % remission)
Background suppression > 10...100 m  Electrical data Electrical design  DC PNP
Operating voltage [V]  18...30 DC Current consumption [mA]  < 150
Life expectancy typ. [h]  50000 Protection class  III Reverse polarity protection  yes
 Outputs Output function  OUT1: normally open / closed programmable
OUT2: normally open / closed programmable or analogue (4...20 mA / 0...10 V, scalable)
Product characteristics Optical level sensor Connector
Visible laser light, protection class 2 laser 4-digit alphanumeric display
Measuring range 0.2...10 m (Range referred to white paper 200 x 200 mm, 90 % remission)
Background suppression > 10...100 m  Electrical data Electrical design  DC PNP
Operating voltage [V]  18...30 DC Current consumption [mA]  < 150
Life expectancy typ. [h]  50000 Protection class  III Reverse polarity protection  yes
 Outputs Output function  OUT1: normally open / closed programmable
OUT2: normally open / closed programmable or analogue (4...20 mA / 0...10 V, scalable)
Current rating [mA]  2 x 200 Short-circuit protection  pulsed Overload protection  yes
Analogue output current output [mA]  4...20; according to IEC 61131-2
- Max. load [Ω]  250 voltage output [V]  0...10; according to IEC 61131-2
- Min. load [Ω]  5000  Range Background suppression  > 10...100 m
Light spot diameter [mm]  < 15 x 15 ( Range 10 m )  Measuring / setting range
Measuring range [m]  0.2...10 (Range referred to white paper 200 x 200 mm, 90 % remission)
Sampling rate [Hz]  1...33  Environment Ambient temperature [°C]  -10...60
Protection  IP 67  Tests / approvals EMC   EN 60947-5-2 MTTF [Years]  186
 Mechanical data Housing materials  housing: diecast zinc; window: glass; LED window: polycarbonate Weight [kg]  0.307  Displays / operating elements
Display  Switching status   2 x LED yellow Operation   LED green
Distance, programming   4-digit alphanumeric display  Electrical connection Connection  M12 connectorWiring
