OY097S Mã sản phẩm: OY097S |‌ OYA1060-90-2-12-P-1 Nhà Sản Xuất: IFM, Germany Tài liệu hướng dẫn Download

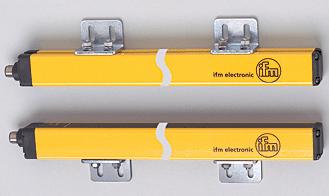

Product characteristics Safety light curtain Length L: 1113 mm Connector Complies with the requirements: type 2 (IEC 61496-1) SIL 2 (IEC 61508) SILcl 2 (IEC 62061) PL d (EN ISO 13849-1)  Electrical data Electrical design  DC PNP Operating voltage [V]  24 DC (19.2...28.8)
Current consumption   - Transmitter [mA]  42 - Receiver [mA]  83 Type of light  Infrared light 950 nm Protection class  III Reverse polarity protection  yes Power-on delay time [s]  < 2
 Outputs Outputs (OSSDs)  2 x PNP
 Product characteristics
Safety light curtain
Length L: 1113 mm
Connector
Complies with the requirements:
type 2 (IEC 61496-1)
SIL 2 (IEC 61508)
SILcl 2 (IEC 62061)
PL d (EN ISO 13849-1)
 Electrical data
Electrical design  DC PNP
Operating voltage [V]  24 DC (19.2...28.8)
Current consumption
- Transmitter [mA]  42
- Receiver [mA]  83
Type of light  Infrared light 950 nm
Protection class  III
Reverse polarity protection  yes
Power-on delay time [s]  < 2
 Outputs
Outputs (OSSDs)  2 x PNP
Max. current load per output [mA]  400 (24 V)
Short-circuit protection  yes
 Range
Protected area height [mm]  1060
Resolution (detection capacity d) [mm]  90
Protected area width (range) [m]  0...4 / 3...12
 Reaction times
Response time [ms]  5.5
 Environment
Applications  Class C to EN 60654-1 weatherproof application
Ambient temperature [°C]  -10...55
Storage temperature [°C]  -20...70
Max. relative air humidity [%]  95
Protection  IP 65 / IP 67
 Tests / approvals
EMC  IEC 61496-1
Shock resistance  IEC 61496-1
Vibration resistance  IEC 61496-1
 Safety classification
Mission time TM [h]  175200
Test interval T1 [Years]  20
Safety-related reliability PFHd [1/h]  3.0E-08
MTTFd [Years]  100
DC/CCF/Cat.  93.0% / 80 % / 2
 Mechanical data
Length L [mm]  1113
Housing materials  housing: aluminium; window: PC
Weight [kg]  3.66
 Displays / operating elements
Display
   LED yellow
   LED green
   LED Red
 Electrical connection
Transmitter
Connection  M12 connector
