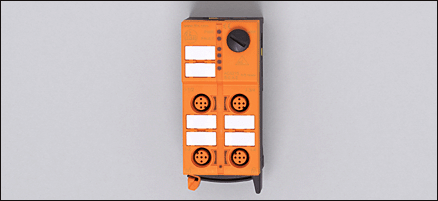

AC5215 Mã sản phẩm: ClassicLine 4DI-Y IP67 Nhà Sản Xuất: Tài liệu hướng dẫn Download

Active ClassicLine module, AS-i flat cable connection, 4 inputs, Version 2.11 and 3.0 with extended addressing mode, Addressing socket, Three orientations of the flat cable are possible, Sockets M12 x 1, ClassicLine 2.1, Digital inputs and outputs, Digital inputs

Operating voltage: 26.5...31.6 V DC
Electrical design: 4 inputs
Total current consumption from AS-i: < 250 mA
Circuit: DC PNP
Sensor supply: AS-i
Voltage range: 18...30 DC V
Housing materials: PA Piercing contacts: CuSn6 surface nickel and tin-plated
Ambient temperature: -25...70 °C
Protection: IP 67
Operation: LED green
Function display: LED yellow
Error: LED Red
Accessories (to be ordered separately): Socket, Mounting accessories
Brand: ifm electronic gmbh or equivalent
