Danh mục sản phẩm > > Fail-safe inductive sensors > GI506S

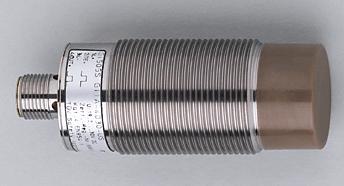

GI506S

Mã sản phẩm: GI506S |‌ GIIA-4030-3PT/KAT4/V4A/US
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download
Inductive sensors Fail-safe inductive sensor Metal thread M30 x 1.5 M12 connector Enable zone 6...12 mm; [nf] non-flush mountable Complies with the requirements: EN ISO 13849-1: 2008 category 4 PL e IEC 61508: SIL 3  Application Type of operation  continuous operation (maintenance-free)  Electrical data Electrical design  DC Operating voltage [V]  24 DC (19.2...30 DC)
Inductive sensors
Fail-safe inductive sensor
Metal thread M30 x 1.5
M12 connector
Enable zone 6...12 mm; [nf] non-flush mountable
Complies with the requirements:
EN ISO 13849-1: 2008 category 4 PL e
IEC 61508: SIL 3
 Application
Type of operation  continuous operation (maintenance-free)
 Electrical data
Electrical design  DC
Operating voltage [V]  24 DC (19.2...30 DC)
Current consumption [mA]  < 15
Protection class  III
Reverse polarity protection  yes
Power-on delay time [s]  5
 Outputs
Output function  Clock signal
Short-circuit protection  yes
 Range
Enable zone [mm]  6...12
Safe switching off distance s(ar) [mm]  30
 Reaction times
Response time to safety request [ms]  ≤ 20
Response time when approaching the enable zone (enable time) [ms]  ≤ 200; typ. 100
 Environment
Applications  Class C to EN 60654-1 weatherproof application
Ambient temperature [°C]  0...70, for service life ≤ 87600 h
10...40, for service life ≤ 175200 h
Rate of temperature change [K/min]  0.5
Max. relative air humidity [%]  5...95, briefly
5...70, permanently
Air pressure [kPa]  80...106
Protection  IP 68 / IP 69K; to EN 60529
 Tests / approvals
EMC  IEC 60947-5-2
Shock resistance  IEC 60947-5-2
Vibration resistance  IEC 60947-5-2
 Safety classification
Mission time TM [h]  ≤ 175200, (20 years)
Safety-related reliability PFHd [1/h]  1.1E-09
MTTFd [Years]  2500
DC/CCF/Cat.  99 % / 65 % / 4
 Mechanical data
Mounting  non-flush mountable
Housing materials  PEEK (polyether ether ketone); high-grade stainless steel; O-ring: FPM
Weight [kg]  0.262
 Displays / operating elements
Display
   LED yellow (signal), LED green (power)
 Electrical connection
Connection  M12 connector; Gold-plated contacts
