PL2053

Mã sản phẩm: PL-025-RES30-E-ZVG/US/ /P
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download

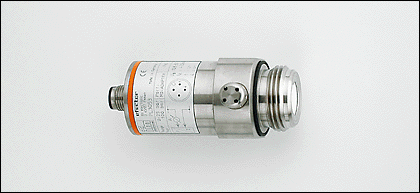

Electronic pressure sensor, 3-wire DC; 2-wire DC, no dead space, Zero and span adjustable, Programmable via EPS interface, Connector, Analogue output
Application: Type of pressure: relative pressure , Hygienic systems, viscous media and liquids with suspended particles, Liquids and gases
Process connection: for Aseptoflex adapter
Operating voltage: 14...30 V DC
Electrical design: 3-wire DC; 2-wire DC
Output function: 4...20 mA analogue
Measuring range: -1.0...25 bar; -15...363 psi; -0.1...2.5 MPa
Pressure rating: 100 bar; 1450 psi; 10 MPa
Bursting pressure min.: 350 bar; 5070 psi; 35 MPa
Characteristics deviation : < ± 0.6
Connection: M12 connector
Housing materials: stainless steel 316L / 1.4404 PEI FPM (Viton)
Materials (wetted parts): ceramics (99.9 % Al2 O3) PTFE stainless steel 316L / 1.4435 surface characteristics: Ra < 0.4 / Rz 4
Medium temperature: -25...80 °C
Ambient temperature: -25...80 °C
Protection: IP 67
Accessories (to be ordered separately): Socket, Mounting accessories
Brand: ifm electronic gmbh or equivalent
