NN5002 Mã sản phẩm: IN-2004-N/1D/2G Nhà Sản Xuất: IFM, Germany Tài liệu hướng dẫn Download

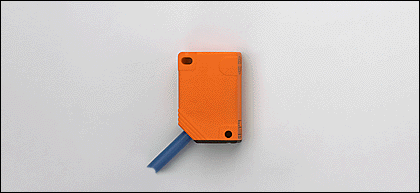

Inductive sensor, Rectangular, plastics, Connection to certified intrinsically safe circuits with the max. values U = 15 V / I = 50 mA / P = 120 mW, ATEX approval, Group II, category 1D, Group II, category 1G/2G, Cable, Sensing range 4 mm [nf]
Nominal voltage: 8.2 DC (1kΩ) V
Electrical design: Connection to certified intrinsically safe circuits with the max. values U = 15 V / I = 50 mA / P = 120 mW
Output function: Normally closed
Current rating: < 30 when used outside the hazardous area mA
Mounting: non-flush mountable
Sensing range: 4 mm
Switching frequency: 400 Hz
Connection: PVC cable / 2 m; 2 x 0.5 mm²
Housing materials: PBT
Ambient temperature: -20...80 °C
Protection: IP 67
Marking of the unit: ExII 1G Ex ia IIB T6 Ga Ta: -20…70° C ExII 1G Ex ia IIB T5 Ga Ta: -20…80° C ExII 2G Ex ia IIC T6 Gb Ta: -20…70° C ExII 2G Ex ia IIC T5 Gb Ta: -20…80° C ExII 1D Ex ia IIIC T90° C Da Ta: -20…70° C ExII 1D Ex ia IIIC T100° C Da Ta: -20…80° C
Accessories (to be ordered separately): Mounting accessories
Brand: ifm electronic gmbh or equivalent
