Danh mục sản phẩm > > Inductive Sensor > IM5020

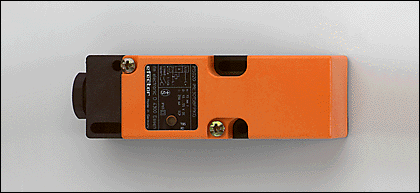

IM5020

Mã sản phẩm: IME3015BFPKG
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download
Inductive sensor, Rectangular, plastics, DC PNP, Terminals, Sensing range 15 mm [f]
Operating voltage: 10...36 V DC
Electrical design: DC PNP
Output function: normally open / closed programmable
Current rating: 250 mA
Mounting: flush mountable
Sensing range: 15 mm
Switching frequency: 350 Hz
Connection: terminals up to 2.5 mm²
Housing materials: PPE
Ambient temperature: -25...80 °C
Protection: IP 65
Output status indication: LED yellow
Accessories (to be ordered separately): Mounting accessories
Brand: ifm electronic gmbh or equivalent
