IFT206 Mã sản phẩm: IFB3004BBPKG/M/V4A/6M/WH Nhà Sản Xuất: IFM, Germany Tài liệu hướng dẫn Download

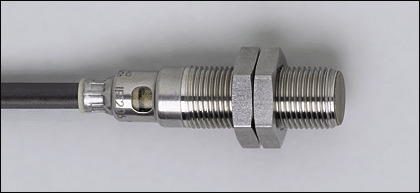

Inductive sensor, Metal thread, M12 x 1, DC PNP, Increased sensing range, Cable, Increased sensing range, Sensing range 4 mm [f]

Operating voltage: 10...36 V DC
Electrical design: DC PNP
Output function: normally open
Current rating: 100 mA
Length: 50 mm
Mounting: flush mountable
Sensing range: 4 mm
Switching frequency: 800 Hz
Connection: PVC cable / 6 m; 3 x 0.34 mm²
Housing materials: stainless steel (316L) active face: PEEK (polyether ether ketone)
Ambient temperature: 0...100 °C
Protection: IP 68 / IP 69K; "COP"
Output status indication: LED yellow
Accessories (to be ordered separately): Mounting accessories
Brand: ifm electronic gmbh or equivalent
