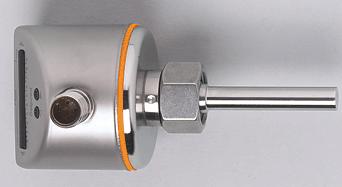

SI5004 Mã sản phẩm: SI5004 |‌ SID10ADB10OG Nhà Sản Xuất: IFM, Germany Tài liệu hướng dẫn Download

Flow transmitter  Compact type for adapter Process connection: internal thread M18 x 1.5 for adapter Analogue output Setting range: 3...300 cm/s (liquids)
 Application Application  liquids  Medium temperature [°C]  -25...80
 Electrical data Electrical design  DC  Operating voltage [V]  19...36 DC
Flow transmitter
Compact type for adapter
Process connection: internal thread M18 x 1.5 for adapter
Analogue output
Setting range: 3...300 cm/s (liquids)
 Application
Application  liquids
Medium temperature [°C]  -25...80
 Electrical data
Electrical design  DC
Operating voltage [V]  19...36 DC
Current consumption [mA]  < 60
Protection class  III
Reverse polarity protection  yes
 Outputs
Output function  4...20 mA analogue
Overload protection  yes
Analogue output  4...20 mA, max. 22 mA
Max. load [Ω]  500
 Measuring / setting range
Liquids
Setting range [cm/s]  3...300
Greatest sensitivity [cm/s]  3...100
Gases
Setting range [cm/s]  -
 Accuracy / deviations
Repeatability [% of Sr]  1...5 *)
Accuracy [% of the final value]  ± 2...± 10 cm/s *)
 Reaction times
Power-on delay time [s]  10
Response time [s]  1...10
 Environment
Pressure rating [bar]  300
MAWP (for applications according to CRN) [bar]  208
Ambient temperature [°C]  -25...80
Storage temperature [°C]  -25...100
Protection  IP 67
 Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-27:  50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6:  20 g (55...2000 Hz)
MTTF [Years]  259
 Mechanical data
Process connection  internal thread M18 x 1.5 for adapter
Materials (wetted parts)  stainless steel 316L / 1.4404; O-ring: FKM 8 x 1.5 gr 80° Shore A
Housing materials  stainless steel 316L / 1.4404; stainless steel (304S15); PC; PBT-GF 20; EPDM/X
Weight [kg]  0.256
 Displays / operating elements
Function display LED  10 LEDs, three-colour
 Electrical connection
Connection  M12 connector
