Danh mục sản phẩm > > Inductive Sensor > IE5298

IE5298

Mã sản phẩm: IEA2002-FROG/US-100-IRF
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download

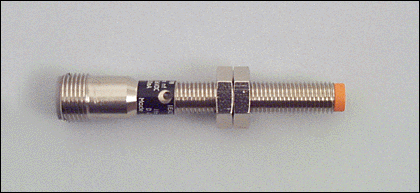

Inductive sensor, Metal thread, M8 x 1, DC PNP/NPN, Connector, Sensing range 2 mm [nf]
Operating voltage: 5...36 V DC
Electrical design: DC PNP/NPN
Output function: normally open / closed programmable
Current rating: 200 mA
Length: 69 mm
Mounting: non-flush mountable
Sensing range: 2 mm
Switching frequency: 2000 Hz
Connection: M12 connector
Housing materials: Brass nickel-plated PBT
Ambient temperature: -25...80 °C
Protection: IP 67
Output status indication: LED yellow
Accessories (to be ordered separately): Socket, Mounting accessories
Brand: ifm electronic gmbh or equivalent
