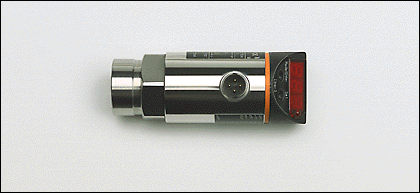

PN7026 Mã sản phẩm: PN-2.5-RBR14-QFPKG/US/ /V Nhà Sản Xuất: IFM, Germany Tài liệu hướng dẫn Download

Electronic pressure monitor, DC PNP, Function programmable, Connector, 7-segment LED display, 2 switching outputs, 7-segment LED display
Application: Type of pressure: relative pressure , Liquids and gases
Process connection: G ¼ I
Operating voltage: 18...30 V DC
Electrical design: DC PNP
Output function: 2 x normally open / closed programmable
Measuring range: 0...2.5 bar
Pressure rating: 20 bar
Bursting pressure min.: 50 bar
Connection: M12 connector
Housing materials: EPDM/X (Santoprene) FPM (Viton) PA PBT (Pocan) PC (Makrolon) PTFE stainless steel (304S15)
Materials (wetted parts): stainless steel (303S22) ceramics FPM (Viton)
Medium temperature: -25...80 °C
Ambient temperature: -25...80 °C
Protection: IP 65
Display: Switching status: 2 x LED Red ; Function display: 7-segment LED display ; Measured values: 7-segment LED display
Accessories (to be ordered separately): Socket, Mounting accessories
Brand: ifm electronic gmbh or equivalent
