Danh mục sản phẩm IFM

NHÀ CUNG CẤP
Danh mục sản phẩm >

Capacitive sensors

KI5052

KI5052
Mã sản phẩm: KI5052 |‌ KIE3015-FPKG/NI/55V/US-100-DPX
Nhà sản xuất: IFM, Germany
Capacitive sensor Plastic thread M30 x 1.5 Connector Increased immunity to conducted radio frequency interference Sensing range 15 mm; [nf] non-flush mountable  Electrical data
Electrical design  DC PNP Operating voltage [V]  10...55 DC; "supply class 2" to cULus. Current consumption [mA]  < 14 (24 V) Protection class  II Reverse polarity protection  yes  Outputs
Output function  normally open / closed programmable

KQ6008

KQ6008
Mã sản phẩm: KQ-3120NFPKG/2T/0.04M/AS
Nhà sản xuất: IFM, Germany
Capacitive sensor Rectangular, plastics
Cable with connector Sensing range 12 mm; [nf] non-flush mountable
 Application
Application  Position sensor and detection of dry bulk materials and liquids through non-metallic tank walls or on bypass pipes
 Electrical data Electrical design  1x open collector DC PNP
Operating voltage [V]  10...36 DC. Current consumption [mA]  < 17

KQ6010

KQ6010
Mã sản phẩm: KQ-3120NFPKG/2T/0.04M/AS
Nhà sản xuất: IFM, Germany
Capacitive sensor Rectangular, plastics
Cable with connector communication interface: IO-Link
Teach function Electronic lock
Sensing range 12 mm; [nf] non-flush mountable
 Application Application  Position sensor and detection of dry bulk materials and liquids through non-metallic tank walls or on bypass pipes
 Electrical data Electrical design  DC PNP
Operating voltage [V]  10...30 DC. Current consumption [mA]  < 17

KQ6003

KQ6003
Mã sản phẩm: KQ6003 |‌ KQ-3120NFAKG/2T/0.04M/AS
Nhà sản xuất: IFM, Germany
Capacitive sensor Rectangular, plastics
Cable with connector communication interface: IO-Link
Teach function Electronic lock
Sensing range 12 mm; [nf] non-flush mountable
 Application Application  Position sensor and detection of dry bulk materials and liquids through non-metallic tank walls or on bypass pipes
 Electrical data Electrical design  DC PNP
Operating voltage [V]  10...30 DC. Current consumption [mA]  < 17

KT5101

KT5101
Mã sản phẩm: KTRBFNUKBPKG/0.3M/DYN/M22
Nhà sản xuất: IFM, Germany
Touch sensor Plastic housing
Cable Touch sensor with dynamic evaluation principle
 Electrical data Electrical design  DC PNP
Operating voltage [V]  24 DC (12...30 DC)
Current consumption [mA]  45
 Outputs Output function  normally open
Current rating [mA]  500

KT5102

KT5102
Mã sản phẩm: KTRBFNUKBPKG/0.3M/DYN/M22
Nhà sản xuất: IFM, Germany
Touch sensor Plastic housing
Cable with connector Touch sensor with dynamic evaluation principle
 Electrical data Electrical design  DC PNP
Operating voltage [V]  24 DC (12...30 DC)
Current consumption [mA]  45
 Outputs Output function  normally open
Current rating [mA]  500 Short-circuit protection  yes
Overload protection  yes  Reaction times
Duration of output signal [ms]  300  Environment
Ambient temperature [°C]  -40...85 Protection  IP 65 / IP 67 / IP 69K; on the front

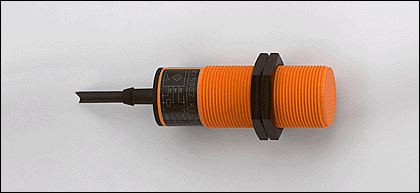

KI0203

KI0203


Mã sản phẩm: KI0203 KI-2015-BBOA/NI RT
Nhà sản xuất: IFM, Germany
Product characteristics
Capacitive sensor Plastic thread M30 x 1.5Cable
Increased immunity to conducted radio frequency interference
Sensing range 15 mm; adjustable 3...15 mm; [nf] non-flush mountable Electrical data Electrical design  AC/DC
Operating voltage [V]  20...250 AC/DC
Protection class  IIReverse polarity protection  no Outputs
Output function  Normally closed Voltage drop [V]  < 10 AC / < 8 DC

KI0203


Mã sản phẩm: KI0203 KI-2015-BBOA/NI RT
Nhà sản xuất: IFM, Germany
Product characteristics
Capacitive sensor Plastic thread M30 x 1.5Cable
Increased immunity to conducted radio frequency interference
Sensing range 15 mm; adjustable 3...15 mm; [nf] non-flush mountable Electrical data Electrical design  AC/DC
Operating voltage [V]  20...250 AC/DC
Protection class  IIReverse polarity protection  no Outputs
Output function  Normally closed Voltage drop [V]  < 10 AC / < 8 DC
