Danh mục sản phẩm > > Flow sensors > SI0521

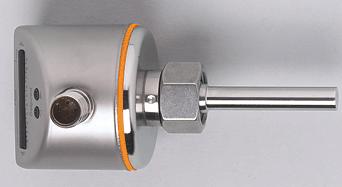

SI0521

Mã sản phẩm: SI0521 |‌ SID10ADBFPKG/US-100
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download
Flow monitor Compact type for adapter Process connection: internal thread M18 x 1.5 for adapter Probe length: 45 mm 2 switching outputs
Setting range: 3...300 cm/s  Application
Application  liquids Medium temperature [°C]  -15...70
 Electrical data Electrical design  DC PNP

Flow monitor
Compact type for adapter
Process connection: internal thread M18 x 1.5 for adapter
Probe length: 45 mm
2 switching outputs
Setting range: 3...300 cm/s
 Application
Application  liquids
Medium temperature [°C]  -15...70
 Electrical data
Electrical design  DC PNP
Operating voltage [V]  24 DC; (18...32 DC)
Current consumption [mA]  < 60
Protection class  III
Reverse polarity protection  yes
 Outputs
Output function  2 x normally open / closed programmable
Current rating [mA]  2 x 250
Voltage drop [V]  < 2.5
Short-circuit protection  pulsed
Overload protection  yes
 Measuring / setting range
Setting range [cm/s]  3...300
Greatest sensitivity [cm/s]  3...100
 Accuracy / deviations
Switch point accuracy [cm/s]  ± 10 *)
Hysteresis [cm/s]  2...5 *)
Repeatability [% of Sr]  1...5 *)
Temperature drift [cm/s x 1/K]  0.1 **)
Max. temperature gradient of medium [K/min]  300
 Reaction times
Power-on delay time [s]  10
Response time [s]  1...10
 Software / programming
Adjustment of the switch point  pushbuttons
 Environment
Bursting pressure [bar]  300
Nominal pressure [bar]  75
Ambient temperature [°C]  -25...80
Storage temperature [°C]  -25...100
Protection  IP 67
 Tests / approvals
EMC
DIN EN 61000-4-2 ESD:   6 kV CD / 8 kV AD
DIN EN 61000-4-3 HF radiated:   10 V/m
DIN EN 61000-4-4 Burst:   2 kV
DIN EN 61000-4-5 Surge:   0.5 kV / 1 kV
DIN EN 61000-4-6 HF conducted:   10 V
Shock resistance
DIN EN 60068-2-27:  50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6:  1.6 mm (2...25 Hz) / 20 g (25...2000 Hz)
MTTF [Years]  267
 Mechanical data
Process connection  internal thread M18 x 1.5 for adapter
Materials (wetted parts)  stainless steel 316L / 1.4404; O-ring: FKM 8 x 1.5 gr 80° Shore A
Housing materials  stainless steel 316L / 1.4404; stainless steel (301 S 22); PC (polycarbonate); PBT-GF 20; EPDM/X
Probe length L [mm]  45
Weight [kg]  0.256
 Displays / operating elements
Function display LED  10 LEDs, three-colour
 Electrical connection
Connection  M12 connector
