Danh mục sản phẩm > > Inductive Sensor > IGM200

IGM200

Mã sản phẩm: IGKC008BASKG/M/US-104-DRS
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download

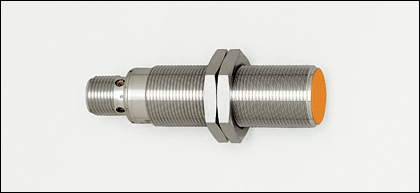

Inductive sensor, Metal thread, M18 x 1, 3-wire DC PNP; 2-wire DC PNP/NPN, e1 type approval, Increased sensing range, Gold-plated contacts, Connector, Increased sensing range, Gold-plated contacts, Sensing range 8 mm [f]
Operating voltage: 10...36 V DC
Electrical design: 3-wire DC PNP; 2-wire DC PNP/NPN
Output function: normally open
Current rating: 100 mA
Length: 70 mm
Mounting: flush mountable
Sensing range: 8 mm
Switching frequency: 200 Hz
Connection: M12 connector
Housing materials: housing: stainless steel active face: PBT lock nuts: Brass
Ambient temperature: -40...85 °C
Protection: IP 67 / IP 69K
Output status indication: LED yellow (4 x 90°)
Accessories (to be ordered separately): Socket, Mounting accessories
Brand: ifm electronic gmbh or equivalent
