Danh mục sản phẩm > > Inductive Sensor > IIM202

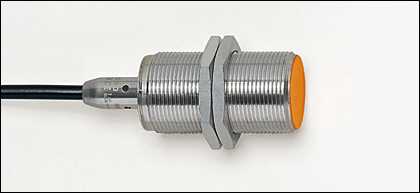

IIM202

Mã sản phẩm: IIM202 IIKC012BASKG/M/6M/ZH
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download
Collapse all categories Product characteristics
Inductive sensor Metal thread M30 x 1.5 Cable
Increased sensing range e1 type approval
Sensing range 12 mm; [f] flush mountable
 Electrical data Electrical design  3-wire DC PNP; 2-wire DC PNP/NPN
Operating voltage [V]  10...36 DC
Current consumption [mA]  < 10; only in 3-wire operation Protection class  II
Reverse polarity protection  yes  Outputs Output function  normally open
Voltage drop [V]  < 2.5 Minimum load current [mA]  > 2; only in 2-wire operation
Leakage current [mA]  < 0.5 Current rating [mA]  100 Short-circuit protection  pulsed
Overload protection  yes Switching frequency [Hz]  100  Range Sensing range [mm]  12

IIM202 IIKC012BASKG/M/6M/ZH Inductive sensors  Collapse all categories Product characteristics Inductive sensor Metal thread M30 x 1.5 Cable
Increased sensing range e1 type approval Sensing range 12 mm; [f] flush mountable
 Electrical data Electrical design  3-wire DC PNP; 2-wire DC PNP/NPN Operating voltage [V]  10...36 DC Current consumption [mA]  < 10; only in 3-wire operation
Protection class  II Reverse polarity protection  yes  Outputs
Output function  normally open Voltage drop [V]  < 2.5
Minimum load current [mA]  > 2; only in 2-wire operation
Leakage current [mA]  < 0.5 Current rating [mA]  100 Short-circuit protection  pulsed
Overload protection  yes Switching frequency [Hz]  100
 Range Sensing range [mm]  12
Operating distance [mm]  0...9.72
 Accuracy / deviations Correction factors  mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / aluminium approx. 0.45 / Cu approx. 0.4 Hysteresis [% of Sr]  1...20
 Environment Ambient temperature [°C]  -40...85
Protection  IP 67 / IP 69K  Tests / approvals EMC  Automotive area
Noise emission and noise interference according to the automotive directive 95/54/EC   (e1 type approval) Noise interference according to DIN ISO 11452-2:   100 V/m
Conducted interference according to ISO 7637-2
Pulse   1 2 3a 3b 4 5 Severity level   IV IV IV IV IV IV
Failure criterion   C C A A A C EN 61000-4-2 ESD:   4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated:   10 V/m (80...2000 MHz) EN 61000-4-4 Burst:   2 kV
EN 61000-4-5 Surge:   0.5 kV (line to line, Ri: 2Ohm)
EN 61000-4-6 HF conducted:   10 V (0.15...80 MHz)
EN 55011:   class B Environmental Inspection Rating  Vibration Test (EN 60068-2-6 Fc):
20 g acceleration; from 10 to 3000 Hz at -20 °C and 50 °C; 50 cycles per frequency; 1 octave per minute in each of 3 mutually perpendicular axes.Shock Test (EN 60068-2-27 Ea):
100 g acceleration; 11 ms half sine wave pulse shape with 3 shocks in each direction along the three coordinate axis at -40 °C and 85 °C.Continuous Shock Test (EN 60068-2-29 Eb):
40 g acceleration; 6 ms with 4000 shocks in any direction along the 3 coordinate axis at -20 °C and 50 °C.Rapid Temperature Change Test (EN 60068-2-14 Na):
Sensor is alternately put in -40 °C environment for 30 minutes and 85 °C environment for 30 min. The transfer between environments must occur in less than 10 seconds. Test is repeated for 50 cycles.Salt Spray Test (EN 60068-2-52 Kb):
Severity level 5 (4 test cycles) MTTF [Years]  1101  Mechanical data Mounting  flush mountable
Housing materials  housing: stainless steel; active face: PBT; LED window: PEI; lock nuts: Brass
Weight [kg]  0.379  Displays / operating elements
Output status indication LED  yellow (4 x 90°)  Electrical connection
Connection  PUR cable / 6 m; 3 x 0.5 mm²; Ø 5.4 mm Wiring
