IGT201 Mã sản phẩm: IGB3012-APKG/M/V4A/US-104-DPO Nhà Sản Xuất: IFM, Germany Tài liệu hướng dẫn Download

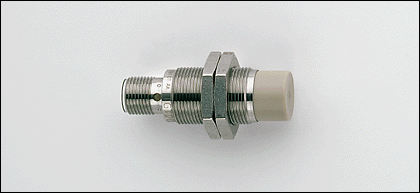

Inductive sensor, Metal thread, M18 x 1, DC PNP, Increased sensing range, Gold-plated contacts, Connector, Increased sensing range, Gold-plated contacts, Sensing range 12 mm [nf]
Operating voltage: 10...36 V DC
Electrical design: DC PNP
Output function: Normally closed
Current rating: 100 mA
Length: 51 mm
Mounting: non-flush mountable
Sensing range: 12 mm
Switching frequency: 300 Hz
Connection: M12 connector
Housing materials: stainless steel (316L) active face: PEEK (polyether ether ketone)
Ambient temperature: 0...100 °C
Protection: IP 68 / IP 69K; "COP"
Output status indication: LED yellow (4 x 90°)
Accessories (to be ordered separately): Socket, Mounting accessories
Brand: ifm electronic gmbh or equivalent
