Danh mục sản phẩm > > Inductive Sensor > IIT207

IIT207

Mã sản phẩm: IIB3022-BPKG/M/V4A/6M/WH
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download

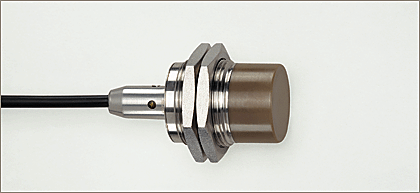

Inductive sensor, Metal thread, M30 x 1.5, DC PNP, Increased sensing range, Cable, Increased sensing range, Sensing range 22 mm [nf]
Operating voltage: 10...36 V DC
Electrical design: DC PNP
Output function: normally open
Current rating: 100 mA
Length: 59 mm
Mounting: non-flush mountable
Sensing range: 22 mm
Switching frequency: 100 Hz
Connection: PVC cable / 6 m; 3 x 0.34 mm²
Housing materials: stainless steel (316L) active face: PEEK (polyether ether ketone)
Ambient temperature: 0...100 °C
Protection: IP 68 / IP 69K
Output status indication: LED yellow (4 x 90°)
Accessories (to be ordered separately): Mounting accessories
Brand: ifm electronic gmbh or equivalent
