Danh mục sản phẩm > > Inductive Sensor > GG505S

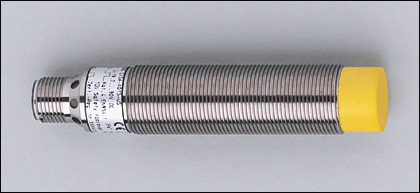

GG505S

Mã sản phẩm: GIGA-4015-US /V4A
Nhà Sản Xuất:

IFM, Germany

Tài liệu hướng dẫn Download
Fail-safe inductive sensor, Metal thread, M18 x 1, DC, M12 connector
Operating voltage: 24 V DC (19.2...30 V DC)
Electrical design: DC
Output function: Clock signal
Length: 90 mm
Mounting: non-flush mountable
Connection: M12 connector
Housing materials: high-grade stainless steel PBT
Ambient temperature: -25...70, for service life ≤ 87600 h 10...40, for service life ≤ 175200 h °C
Protection: IP 68 / IP 69K; to EN 60529
Display:  LED yellow (signal), LED green (power)
Accessories (to be ordered separately): Socket, Mounting accessories
Brand: ifm electronic gmbh or equivalent
