Danh mục sản phẩm IFM

NHÀ CUNG CẤP
Danh mục sản phẩm >

Safety light curtains

New Product
OY805S

OY805S
Mã sản phẩm: OY805S |‌ OYA0760-14-4-05-P-1-B
Nhà sản xuất: IFM, Germany
Photoelectric sensors Safety light curtain Length L: 861 mm Connector with floating blanking
Complies with the requirements: type 4 (IEC 61496-1) SIL 3 (IEC 61508) SILcl 3 (IEC 62061)
PL e (EN ISO 13849-1)  Electrical data Electrical design  DC PNP Operating voltage [V]  24 DC (19.2...28.8) Current consumption   - Transmitter [mA]  83 - Receiver [mA]  125 Type of light  Infrared light 950 nm

New Product
OY407S

OY407S
Mã sản phẩm: OY407S |‌ OYA1060-14-4-04-P-1-A
Nhà sản xuất: IFM, Germany
Photoelectric sensors Safety light curtain Length L: 1230 mm Cable with IP69K protective tube
Complies with the requirements: type 4 (IEC 61496-1) SIL 3 (IEC 61508) SILcl 3 (IEC 62061)
PL e (EN ISO 13849-1)  Electrical data Electrical design  DC PNP Operating voltage [V]  24 DC (19.2...28.8) Current consumption   - Transmitter [mA]  42 - Heating [mA]  417
- Receiver [mA]  83 - Heating [mA]  417 Type of light  Infrared light 950 nm Protection class  III
Reverse polarity protection  yes Power-on delay time [s]  < 2  Outputs Outputs (OSSDs)  2 x PNP Max. current load per output [mA]  400 (24 V)

New Product
OY403S

OY403S
Mã sản phẩm: OY403S |‌ OYA0460-14-4-04-P-1-A
Nhà sản xuất: IFM, Germany
Photoelectric sensors Safety light curtain Length L: 630 mm
Cable with IP69K protective tube Complies with the requirements: type 4 (IEC 61496-1)
SIL 3 (IEC 61508) SILcl 3 (IEC 62061) PL e (EN ISO 13849-1)  Electrical data Electrical design  DC PNP Operating voltage [V]  24 DC (19.2...28.8) Current consumption   - Transmitter [mA]  42 - Heating [mA]  250 - Receiver [mA]  83 - Heating [mA]  250 Type of light  Infrared light 950 nm

New Product
OY405S

OY405S
Mã sản phẩm: OY405S |‌ OYA0760-14-4-04-P-1-A
Nhà sản xuất: IFM, Germany
Photoelectric sensors  Product characteristics Safety light curtain Length L: 930 mm Cable
with IP69K protective tube Complies with the requirements: type 4 (IEC 61496-1) SIL 3 (IEC 61508) SILcl 3 (IEC 62061) PL e (EN ISO 13849-1)  Electrical data Electrical design  DC PNP
Operating voltage [V]  24 DC (19.2...28.8) Current consumption   - Transmitter [mA]  42
- Heating [mA]  375 - Receiver [mA]  83 - Heating [mA]  375 Type of light  Infrared light 950 nm

OY804S

OY804S


Mã sản phẩm: OY804S |OYA0610-14-4-05-P-1-B
Nhà sản xuất: IFM, Germany

Photoelectric sensors-OY804S

Addition is the code: OY805S, OY806S, OY807S, OY808S.


OY815S

OY815S
Mã sản phẩm: OY815S | OYA0610-20-4-18-P-1-B
Nhà sản xuất: IFM, Germany
Photoelectric sensors-OY815S

OY034S

OY034S


Mã sản phẩm: OY034S | OYA0610-30-2-12-P-1
Nhà sản xuất: IFM, Germany
Photoelectric sensors-OY034S

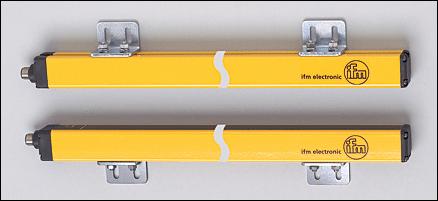

OY112S

OY112S
Mã sản phẩm: OY112S | OYA0810-03-2-12-P-1
Nhà sản xuất: IFM, Germany

Photoelectric sensors-OY112S
