Inductive Sensor

IFM207

IFM207

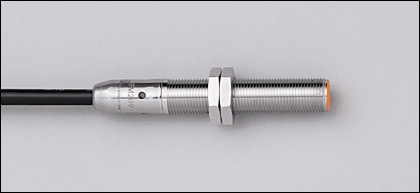

Mã sản phẩm: IFM207 IFKC004BASKG/M/6M/ZH
Nhà sản xuất: IFM,Germany
IFM207 IFKC004BASKG/M/6M/ZH Inductive sensors Collapse all categories
 Product characteristics Inductive sensor Metal thread M12 x 1 Cable
Increased sensing range e1 type approval Sensing range 4 mm; [f] flush mountable
 Electrical data Electrical design  3-wire DC PNP; 2-wire DC PNP/NPN
Operating voltage [V]  10...36 DC Current consumption [mA]  < 10; only in 3-wire operation
Protection class  II Reverse polarity protection  yes  Outputs Output function  normally open
Voltage drop [V]  < 2.5 Minimum load current [mA]  > 2; only in 2-wire operation
Leakage current [mA]  < 0.5 Current rating [mA]  100 Short-circuit protection  pulsed
Overload protection  yes Switching frequency [Hz]  400  Range Sensing range [mm]  4
Operating distance [mm]  0...3.24  Accuracy / deviations
Correction factors  mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / Al approx. 0.5 / Cu approx. 0.4 Hysteresis [% of Sr]  1...20
